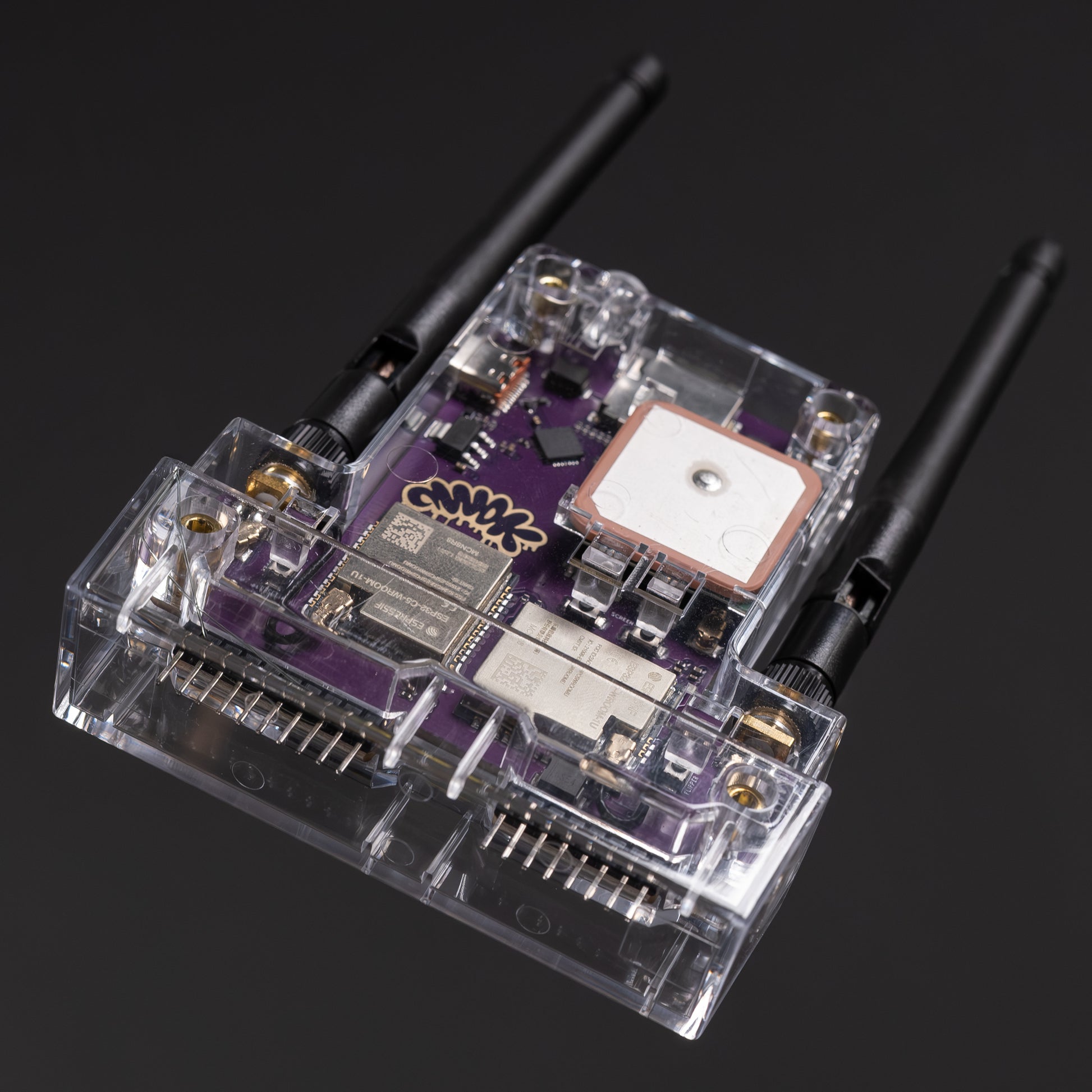

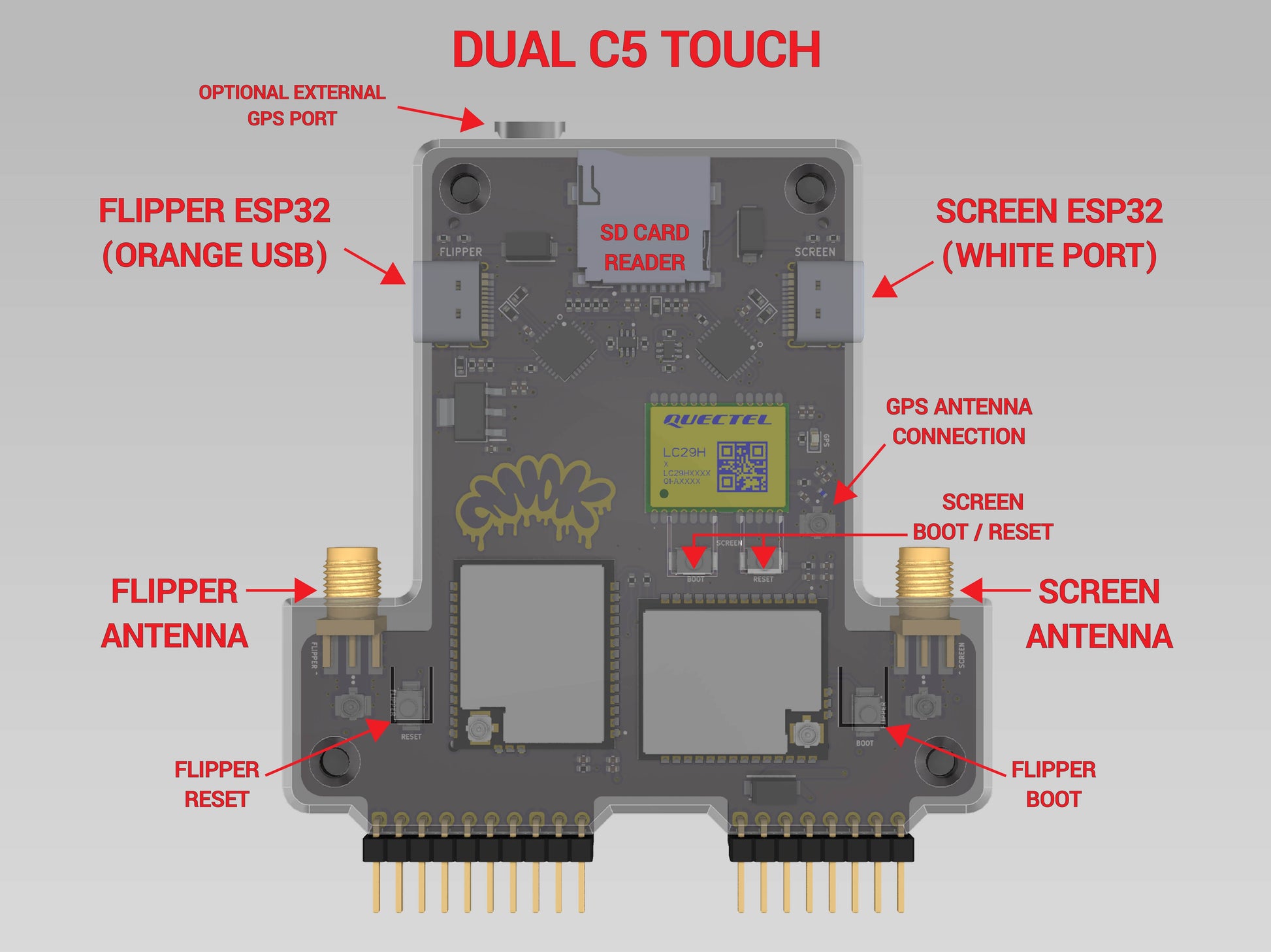

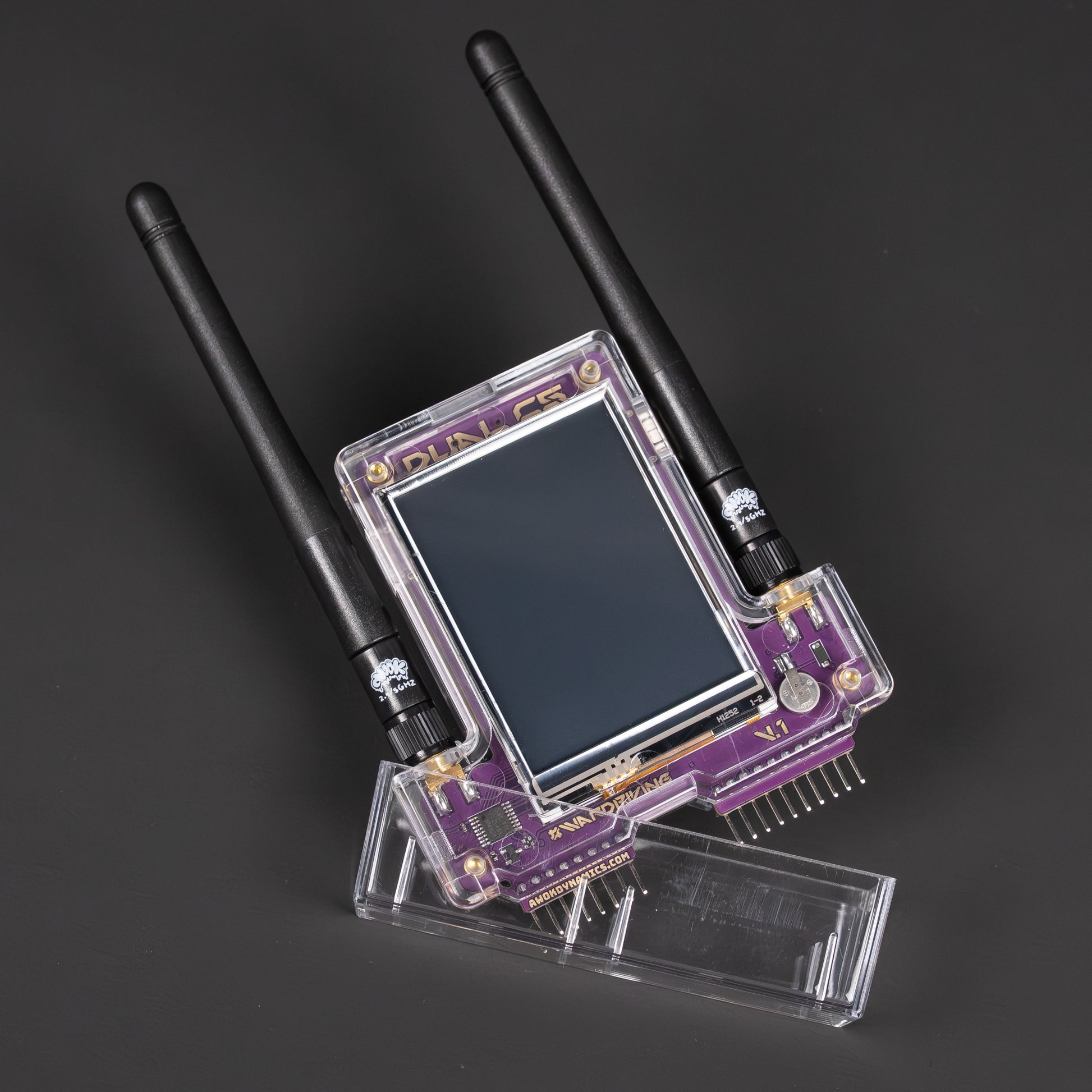

Dual C5 Touch

New and improved Dual ESP32 Wi-Fi Development Board designed by AWOK

FEATURES

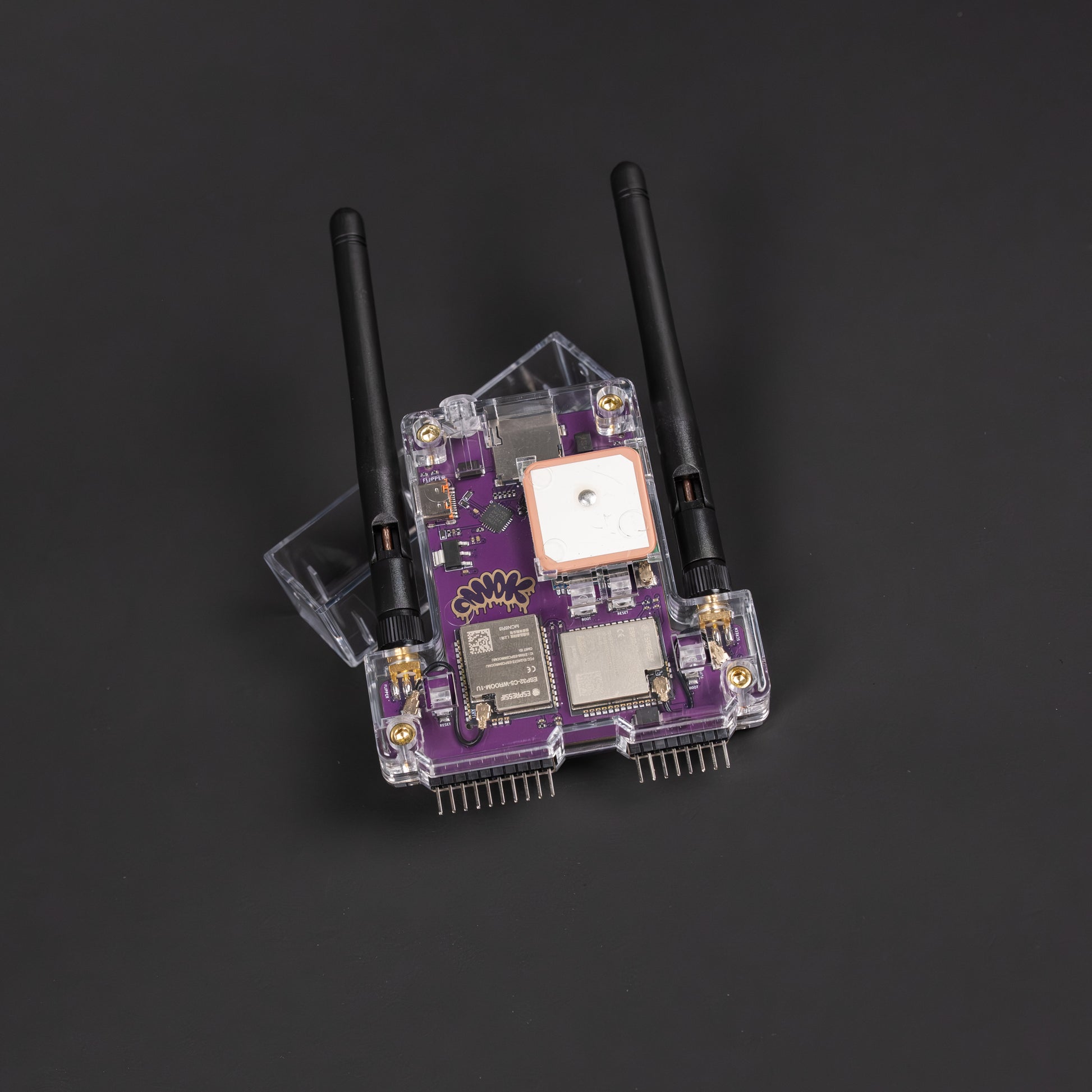

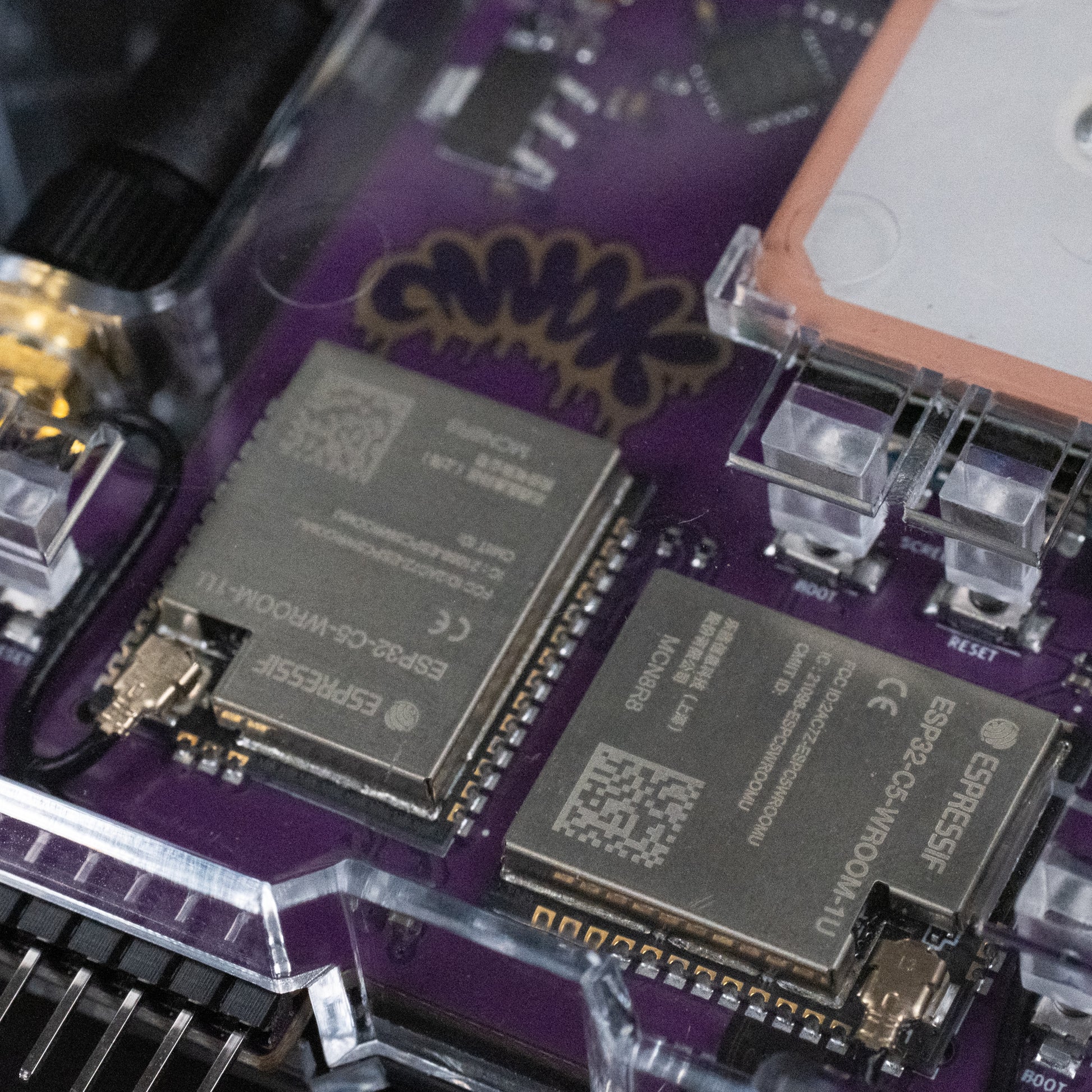

• This board contains two Espressif ESP32-C5-WROOM-1U radio modules.
• The new GNSS / GPS module allows for Dual band L1/L5, 4 GNSS, w/ LNA and the chip communicates with both ESP32's.
• Programmable development hardware intended for firmware education, wireless-protocol research, interoperability testing, and authorized defensive evaluation of systems owned by the user or tested with the system owner’s explicit permission.
• This development board does not include application firmware. It is intended to provide hardware for users to program and develop their own firmware. Various compatible firmware packages may be available from third parties; users are responsible for selecting and operating firmware lawfully and only on systems they own or are explicitly authorized to test.

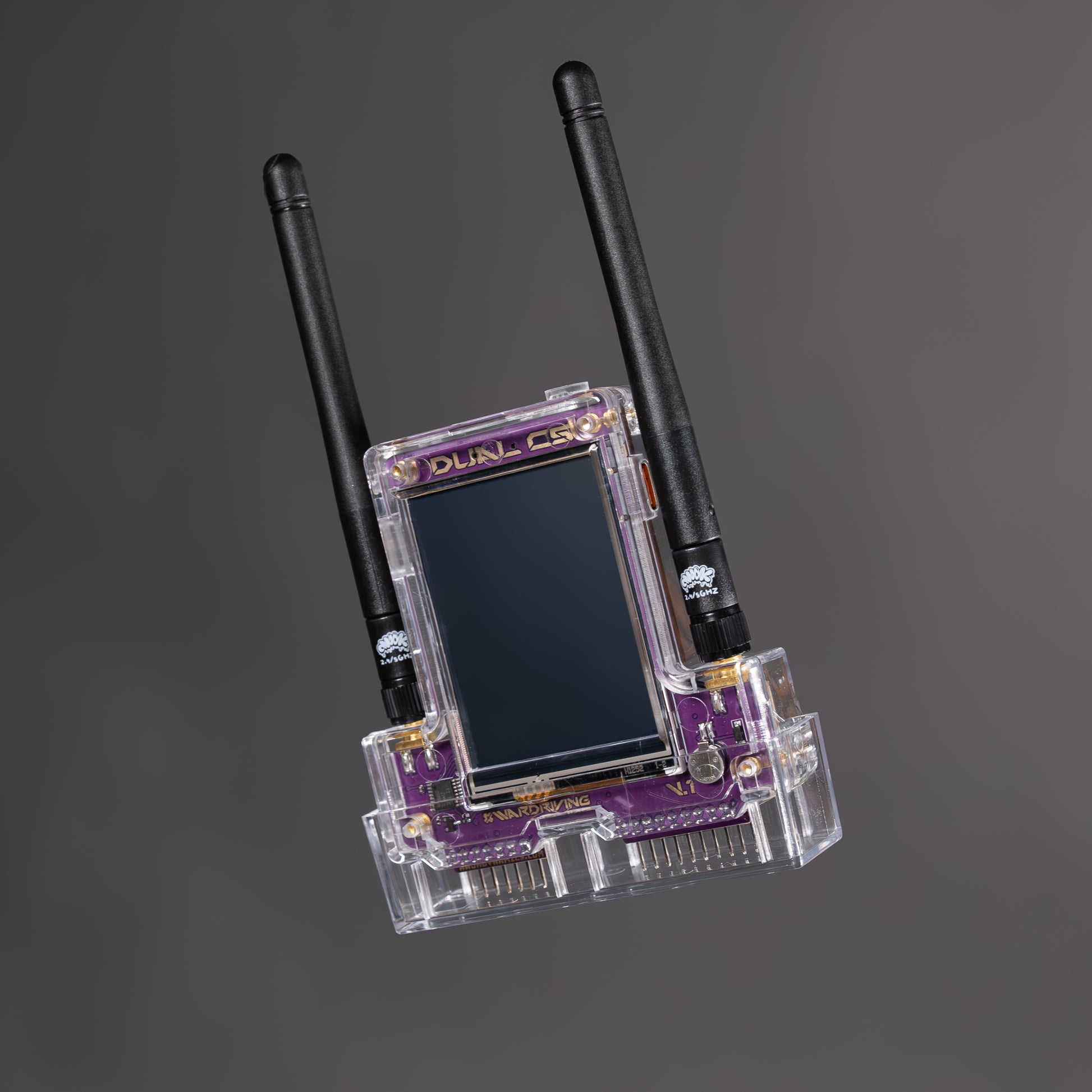

• One ESP32 controls the screen, the other can be used via CLI or via the GPIO pins

WHAT'S INCLUDED

• 1x Dual Touch C5 PCB
• 1x Case (Clear) with option SMA antenna mount hole
• 2x External 2.4/5ghz antenna (3dbi)
• 1x INTERNAL ceramic GPS antenna (installed) *NOT EXTERNAL


WHAT'S NOT INCLUDED

• External GPS antenna

• Firmware

REGULATORY INFORMATION

• This product contains two Espressif ESP32-C5-WROOM-1U radio modules. Each module is identified under FCC ID: 2AC7Z-ESPC5WROOMU.
• Module certification documentation, product information, and AWOK’s responsible-use policy are available here


DISCLAIMER

• The hardware purchased from this site is for educational and experimental purposes only and is not meant for any illegal activity or purposes. I do not condone illegal activity and strongly encourage keeping usage to legal or valid educational and experimental uses allowed by law on your own equipment and or equipment you have permission to experiment on. Please check your local State and or Country laws before using any products purchased from AWOK Dynamics. Thank you.



*If your device starts randomly scrolling through menus, loosen the back screws just a bit to take pressure off the screen also check the inside of the front bezel. Make sure the edges are smooth and there’s no extra plastic sticking out. Sometimes the molding process leaves small imperfections that can put pressure on the screen. If you notice any sharp or leftover plastic, just use something flat or sharp to carefully trim it off. I do my best to catch and fix these flaws before shipping, but a few can slip through.
