Dual Mini v2

Dual ESP32 Wi-Fi Board designed by AWOK for the Flipper Zero

FEATURES

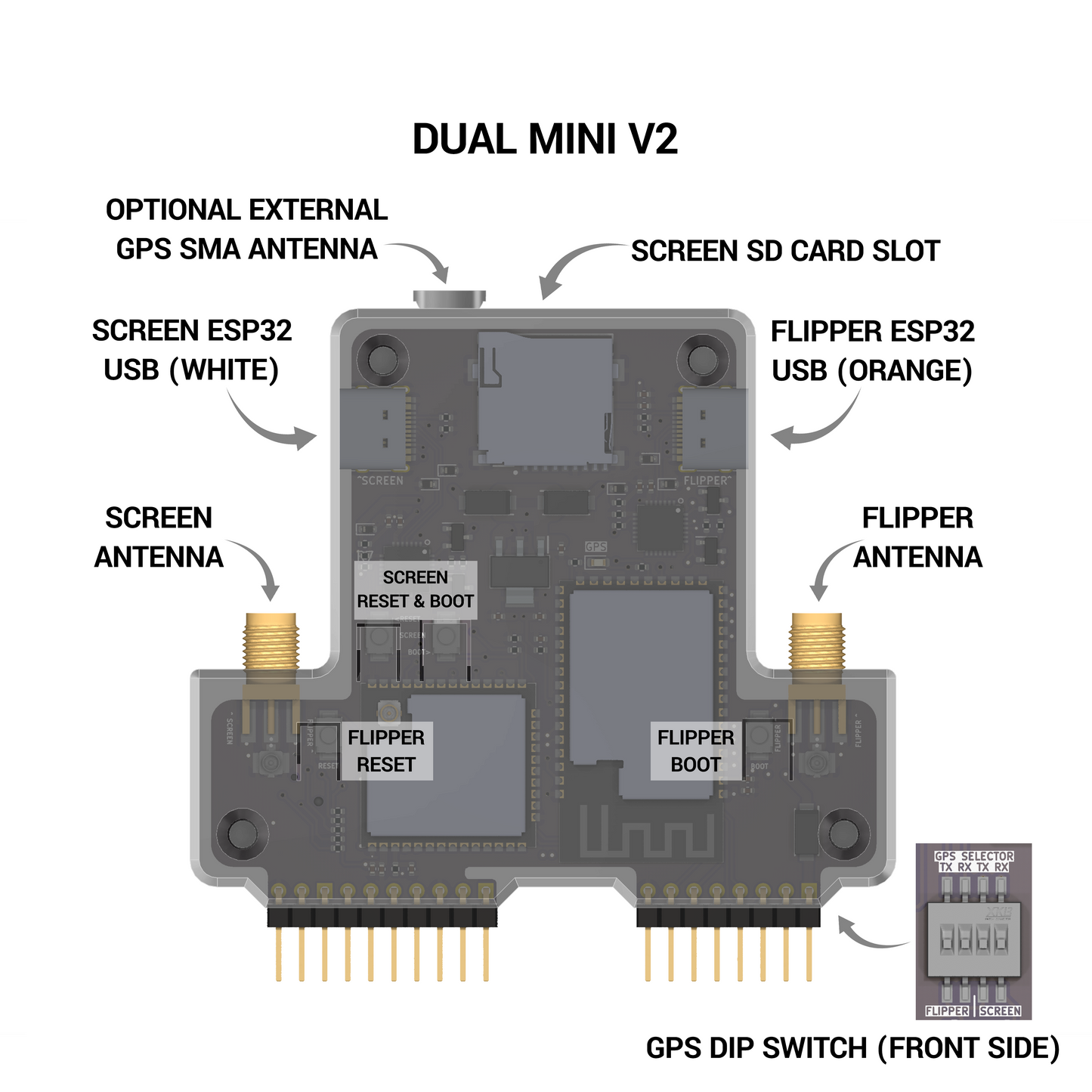

• This board has 2 ESP32 chips, and with version 2 you now have an on board GPS.
• The GPS can be toggled on and off for both ESP32 chips via the dip switches located on the front of the board.
• The GPS can be ran simultaneously to both chips (by default all switches will be flipped to the on position)
• The ESP32 that is running marauder to the 1.44" screen is an ESP32-WROOM, and the other that is controlled by the flipper is a ESP32-S2-WROVER.
• Both the WROOM & WROVER are flashed with the latest marauder firmware from Just Call Me Koko. A video by TheTalkingSasquach can be seen here.
• Instruction on how to update firmware is available on SkeletonMan03's GitHub page, or on the FzeeFlasher page. (orange port programs the ESP32-S2-WROVER connected to the flipper, white port programs the ESP32-WROOM connected to the screen.)

WHATS INCLUDED

• 1x Dual Mini PCB

• 1x Case (Black) with option SMA antenna mount hole

• 2x External 2.4ghz antenna

• 1x Internal ceramic GPS antenna


UPDATES

• This board uses the mini.bin (white usb) and the flipper_sd_serial.bin (orange usb) The ESP32-S2-WROVER connected to the flipper can also be used to run EvilPortal by bigbrodude6119 if you chose to do so, just flash the .bin files from this link.
• STL files for printing your own case can be found here.

DISCLAIMER

• The hardware purchased from this site is for educational and experimental purposes only and is not meant for any illegal activity or purposes. I do not condone illegal activity and strongly encourage keeping usage to legal or valid educational and experimental uses allowed by law on your own equipment and or equipment you have permission to experiment on. Please check your local State and or Country laws before using any products purchased from AWOK Dynamics. Thank you.
