AWOK Dynamics
Dual Touch v3
Dual Touch v3
Couldn't load pickup availability
Dual ESP32 Wi-Fi Development Board designed by AWOK
FEATURES

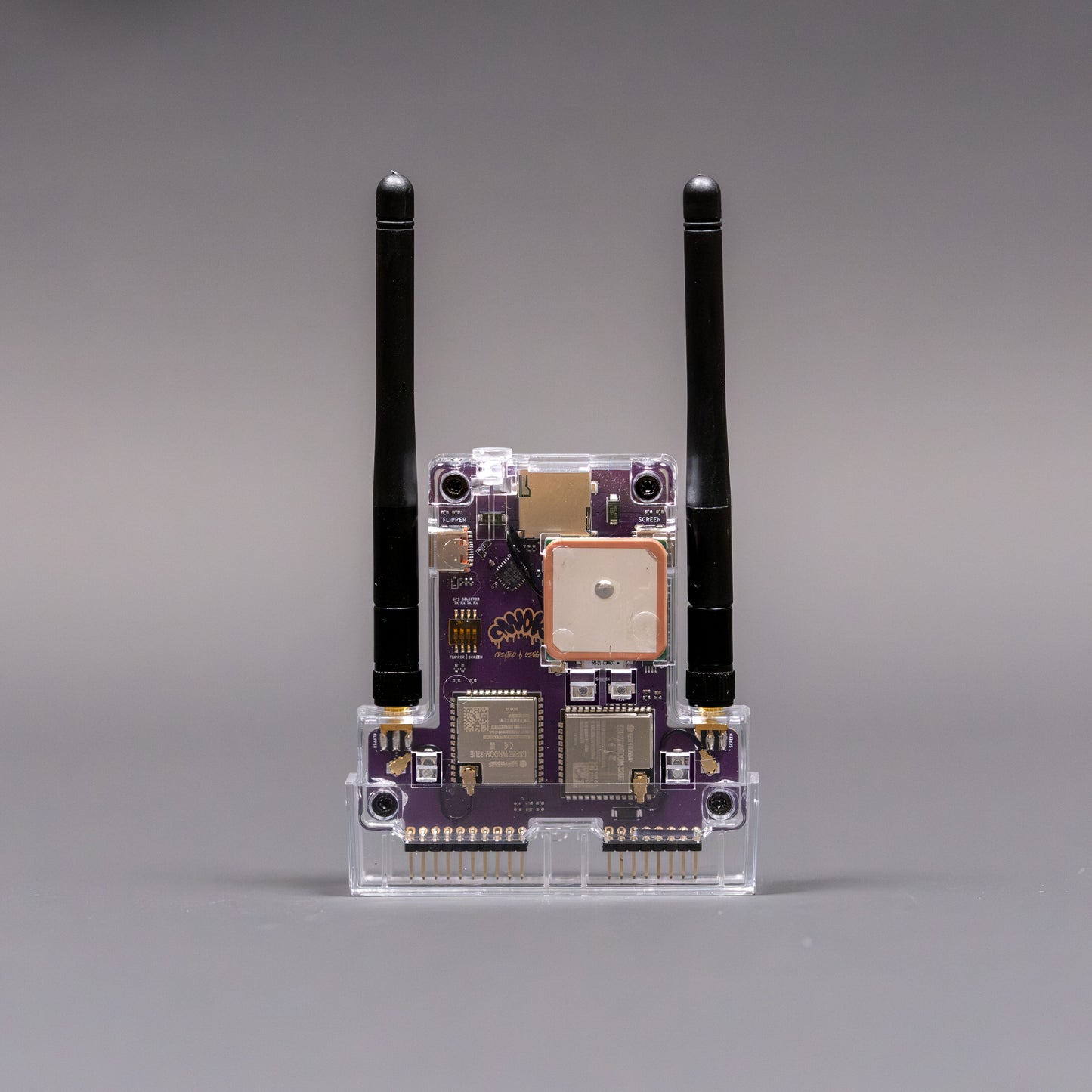

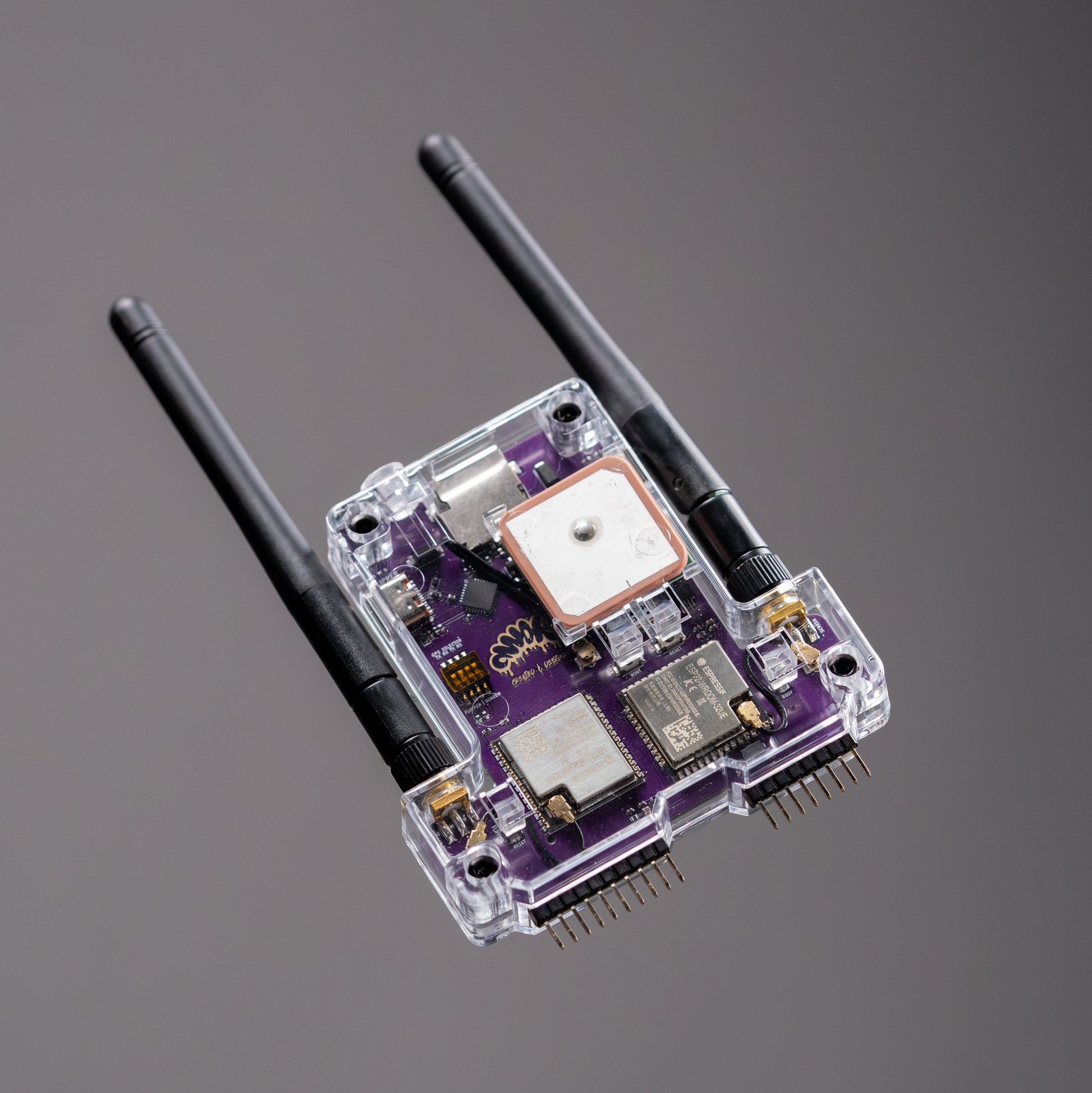

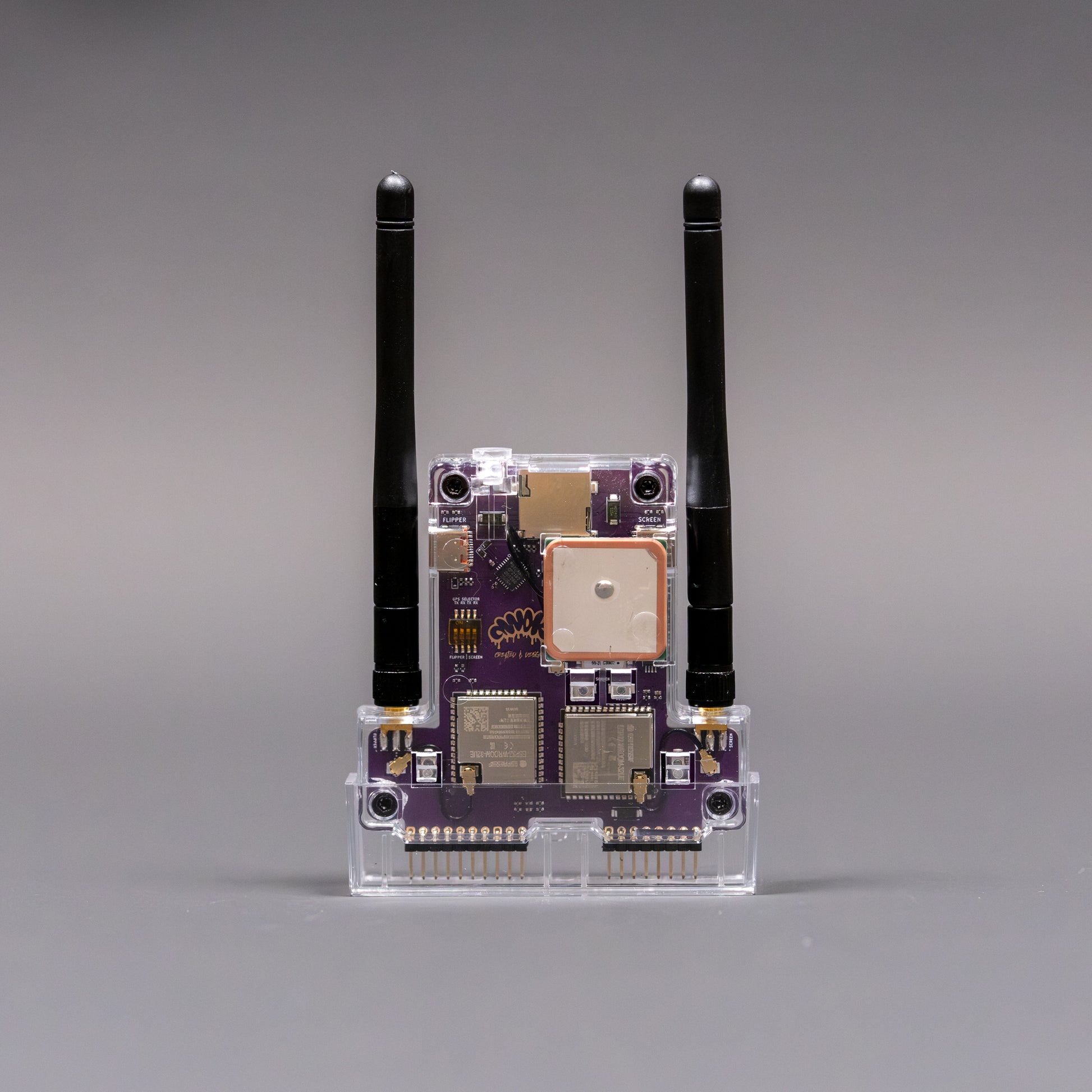

- This board has 2 ESP32-WROOM chips on it.

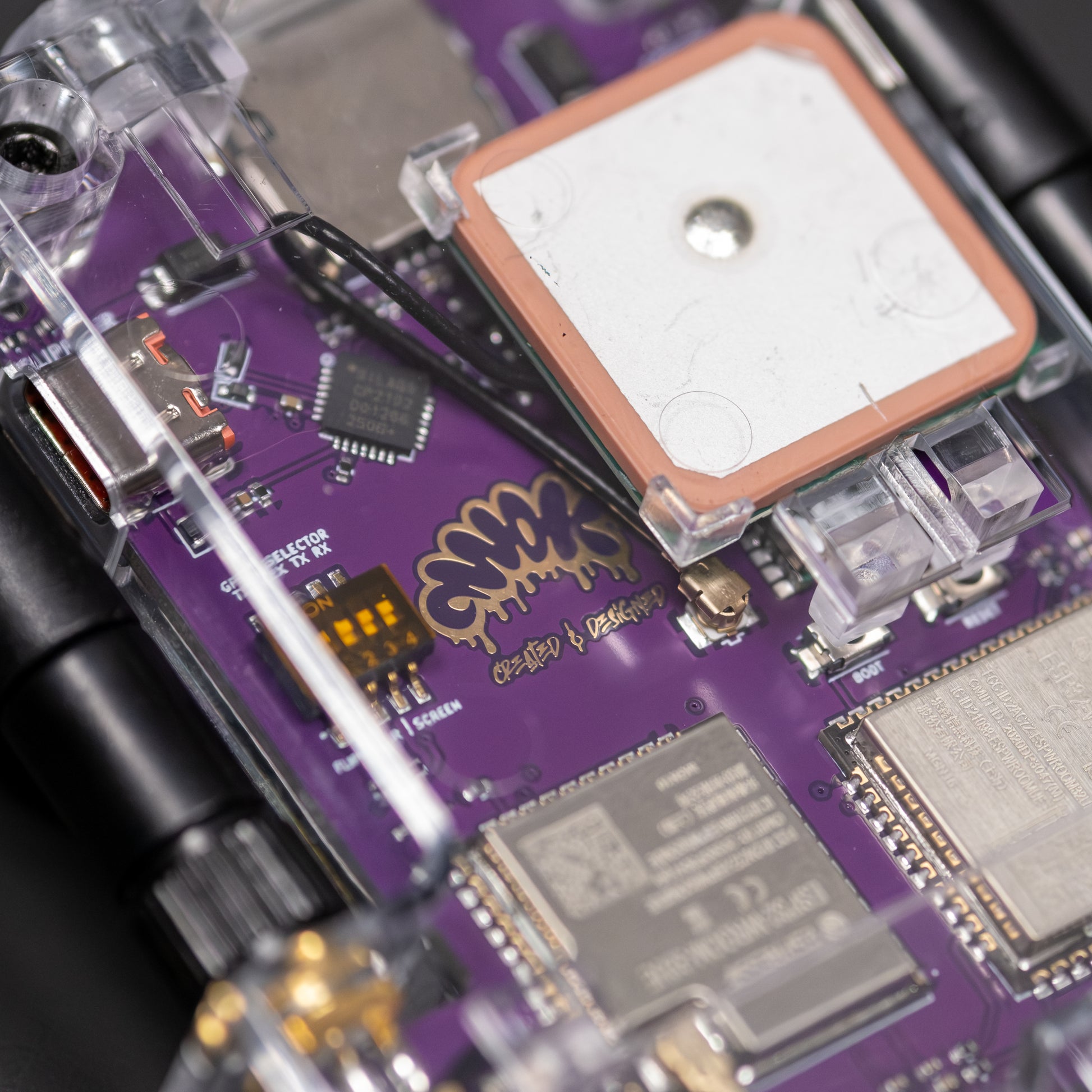

- GPS can be toggled on and off for both ESP32 chips via the dip switches located on the back of the board.
- The GPS can be ran simultaneously to both chips (by default all switches will be flipped to the on position)
- This board is intended to monitor your network and should not be used to transmit.
- This Development board does not include firmware, the intention of this device is to provide you with hardware to program and develop your own firmware. There are many different firmware's that an ESP32 can run and are available online so please research which one suits your needs the best.

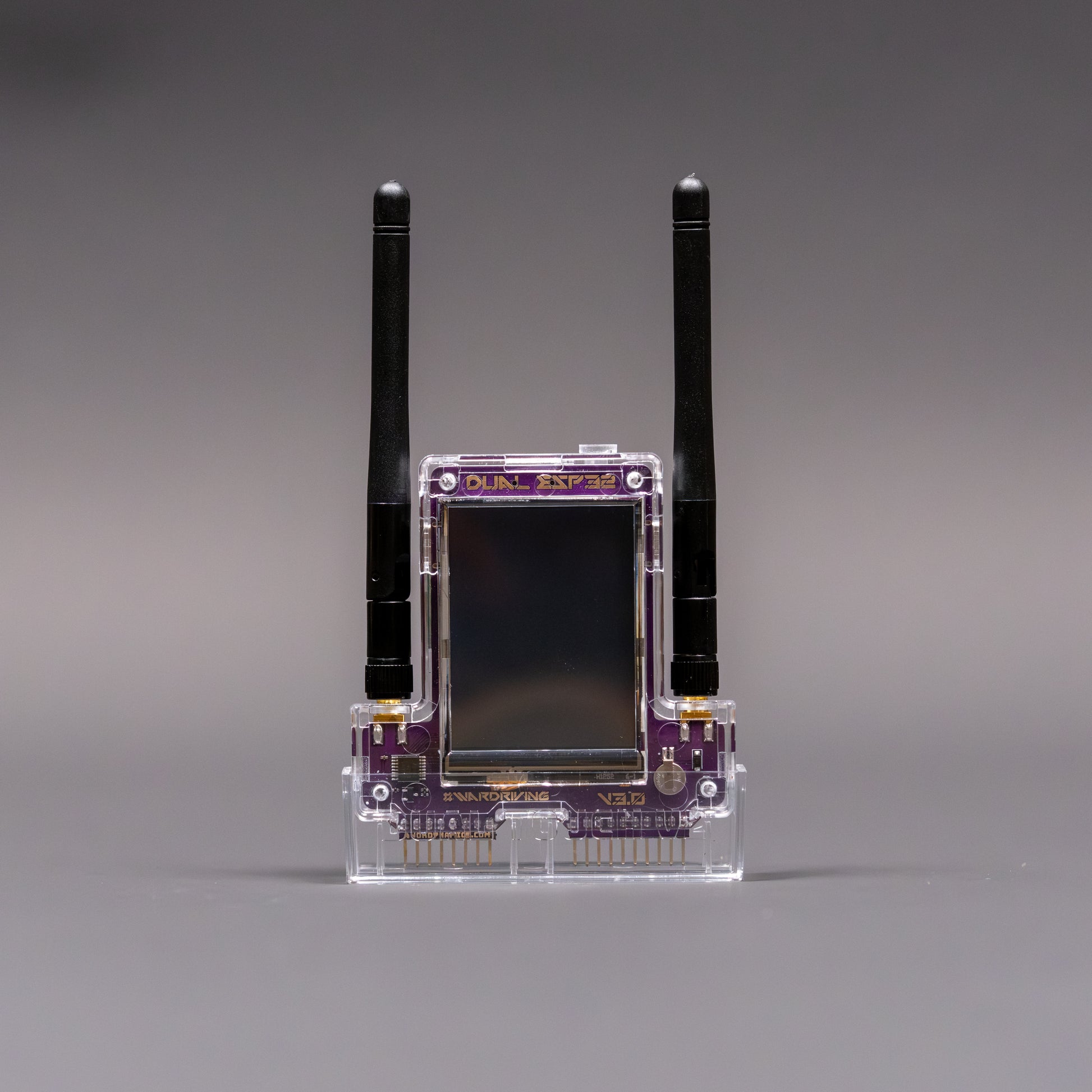

- One ESP32 controls the screen, the other can be used via CLI or via the GPIO pins
WHATS INCLUDED
- 1x Dual Touch V3 PCB

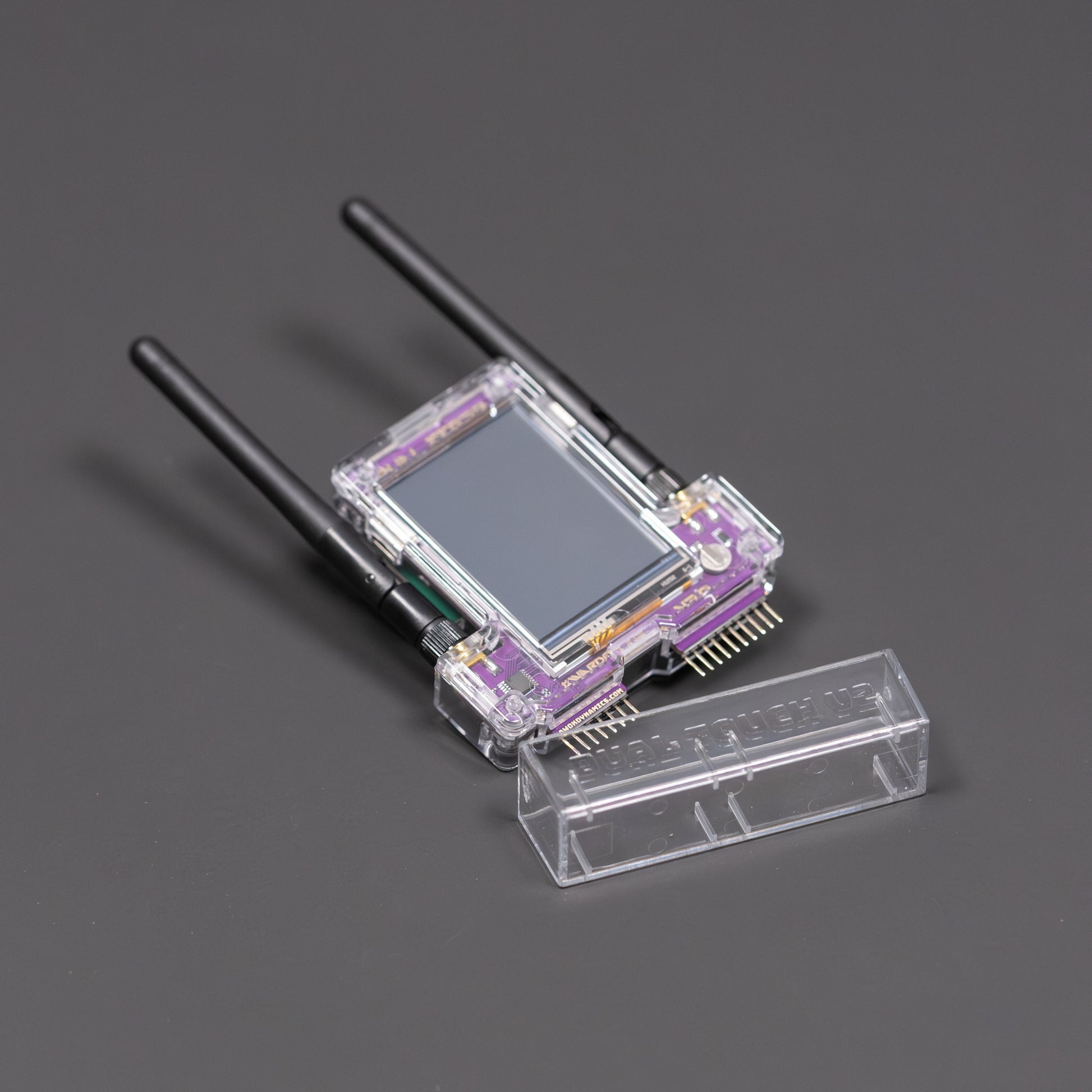

- 1x Case (Clear) with option SMA antenna mount hole
- 2x External 2.4ghz antenna
- 1x INTERNAL ceramic GPS antenna *NOT EXTERNAL
WHATS NOT INCLUDED
- External GPS antenna
- Firmware
UPDATES
- STL files for printing your own case can be found here.
DISCLAIMER
- The hardware purchased from this site is for educational and experimental purposes only and is not meant for any illegal activity or purposes. I do not condone illegal activity and strongly encourage keeping usage to legal or valid educational and experimental uses allowed by law on your own equipment and or equipment you have permission to experiment on. Please check your local State and or Country laws before using any products purchased from AWOK Dynamics. Thank you.
*If your device starts randomly scrolling through menus, check the inside of the front bezel. Make sure the edges are smooth and there’s no extra plastic sticking out. Sometimes the molding process leaves small imperfections that can put pressure on the screen. If you notice any sharp or leftover plastic, just use something flat or sharp to carefully trim it off. I do my best to catch and fix these flaws before shipping, but a few can slip through.
Share
This thing is so much fun. I've been messing around with this thing for a while and dang is it powerful. Being able to access both chips using the unit and the flipper zero has been game changing. Might need to upgrade to the C5 version but this is still a powerful unit regardless.
Awesome product.

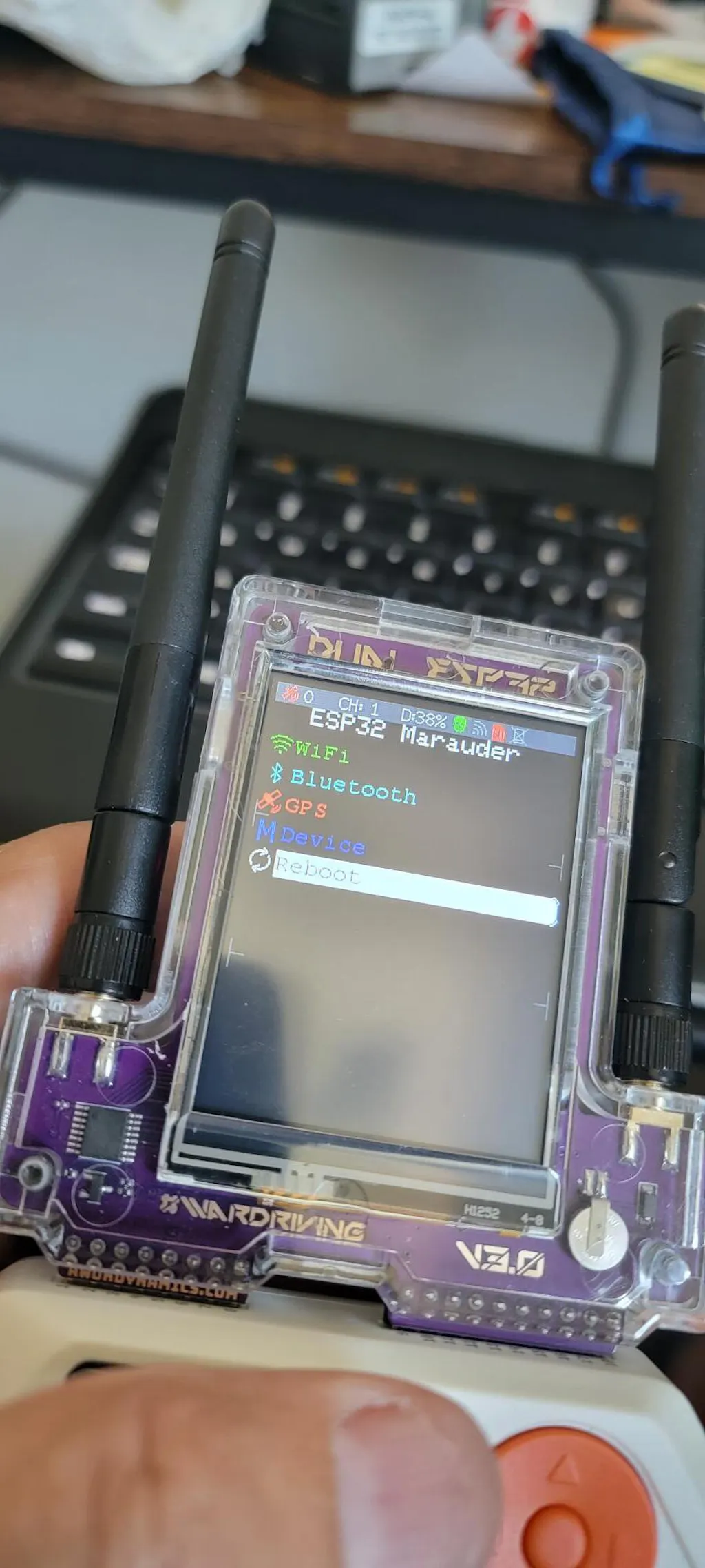

Great quality and a nice support even if you dont get how the touchscreen works.The upper part of the touch is for navigating up the lower part for down and the center is to select your choice. Have fun with it
Very well made product, arrived in perfect condition, and thought the sticker was cool.
The touchscreen is pretty hard to use effectively. You try to select options in the menu and it jumps around causing it to select an unwanted option and return back to were you want to go. The ESP became a paper weight after a few attempts to use it.
Sorry to hear your having difficulty with your device. I do not see an email or support ticket opened for your issue. Also there is a section on the product page that explains this very issue and the steps to take to correct it. Also in the FAQs section there is a guide to fix this problem. Please reach out or check the website in order to address your problem. If those steps do not work you are always welcome to request an RMA.
