Duo Board (Bare Bones)

Custom DIY Duo Board for Flipper Zero

FEATURES

• This board allows you to build a ESP32 x nRF24.
• Parts needed to complete this board will be an nRF24L01P+PA+LNA (AS01-ML01DP5) *any nRF should work as long as the pin out is the same (but the optional case may not work), and a WeMos D1 mini esp32.
• Instruction on how to update firmware for your ESP32 are available on SkeletonMan03's GitHub page, or on the FzeeFlasher page.
• A tutorial on how to assemble the board can be found HERE , STL files for printing your own case can be found HERE for this version of the board. (Case only works with the nRF24L01P+PA+LNA (AS01-ML01DP5), or basic nRF chip with no external antenna.)

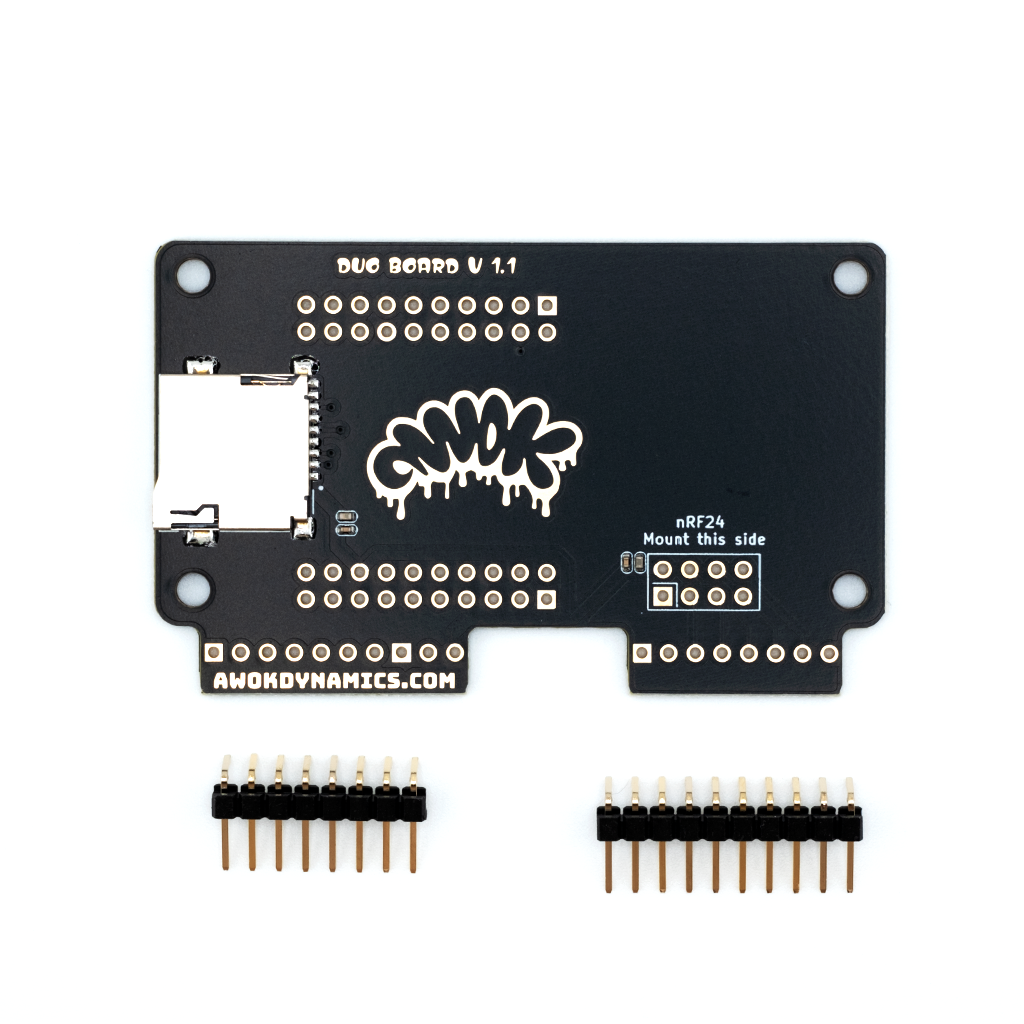

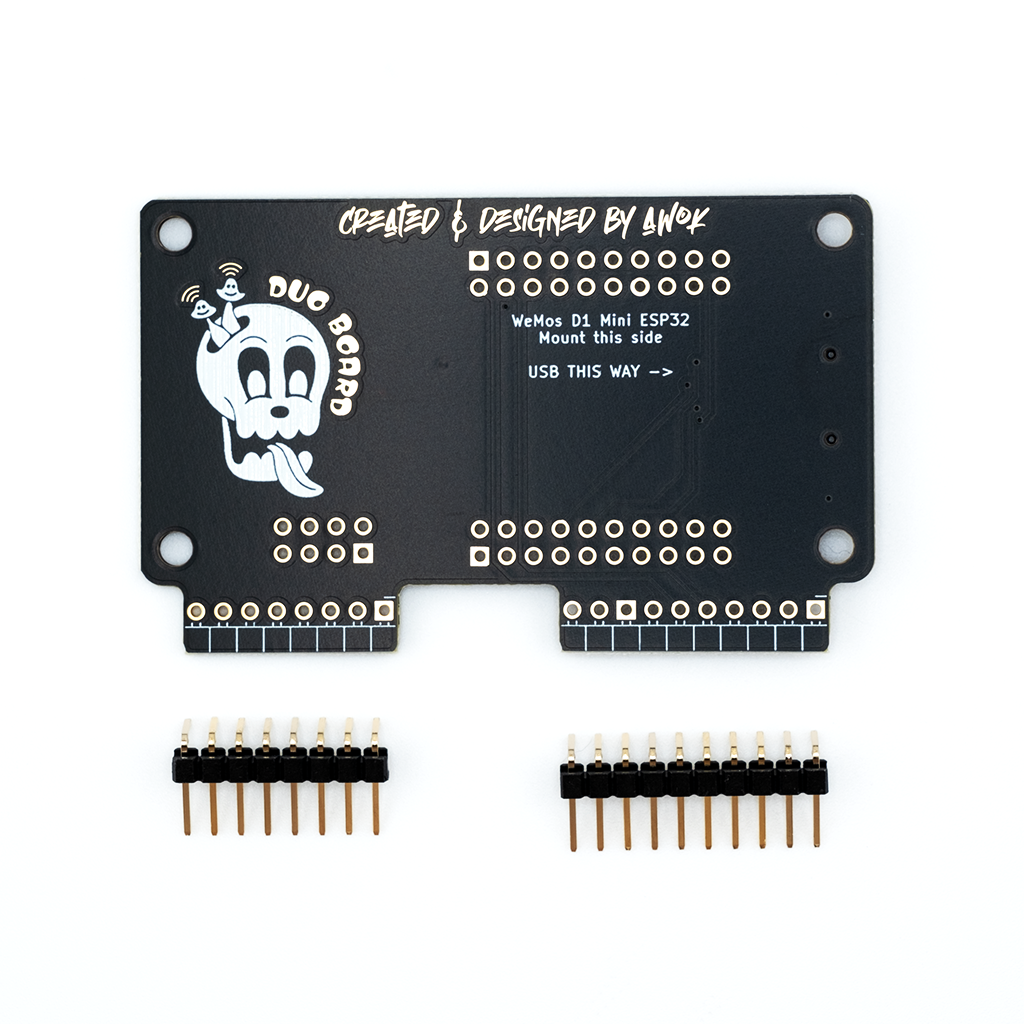

WHATS INCLUDED

• 1x Duo PCB
• 2x Headers

DISCLAIMER

• The hardware purchased from this site is for educational and experimental purposes only and is not meant for any illegal activity or purposes. I do not condone illegal activity and strongly encourage keeping usage to legal or valid educational and experimental uses allowed by law on your own equipment and or equipment you have permission to experiment on. Please check your local State and or Country laws before using any products purchased from AWOK Dynamics. Thank you.
